Name:The 86 BYGs treads into electrical engineering
Model:86BYG步進(jìn)電機(jī)
Product Features:
The 86 BYGs treads into electrical engineering
Description Parameter

Model number
Model No.Is biggest quiet to twist Ju
± 10% holdings
The Torque sum settles electric current
Current
|Phase mutually feeling anti- ± 20%
Inductance
|Phase mutually resistance ± 10%
Resistamce
|Phase turns son to spoil quantity
Rotor
Inertia fuselage length L
Motor
Length weight
Motor
Weight fuse amount
# of
leads
N.m  A  mH  Ohms  g.cm 2  mm  Kg
86HB2A65-01  3.5  2|4  3.9  1.4  800  65  2  8
86HB2A80-01  4.5  3|6  3.6  0.8  1400  80  2.3  8
86HB2A101-01  6  5  4.9  0.52  2300  101  3.25  4
86HB2A118-01  8.5  3|6  4.4  0.87  2800  118  3.8  8
86HB2A156-01  12  3|6  6.4  1.12  4000  156  5.4  8

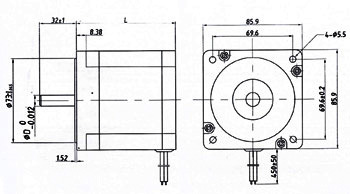

Figure(6)

 Wiring Diagram :
